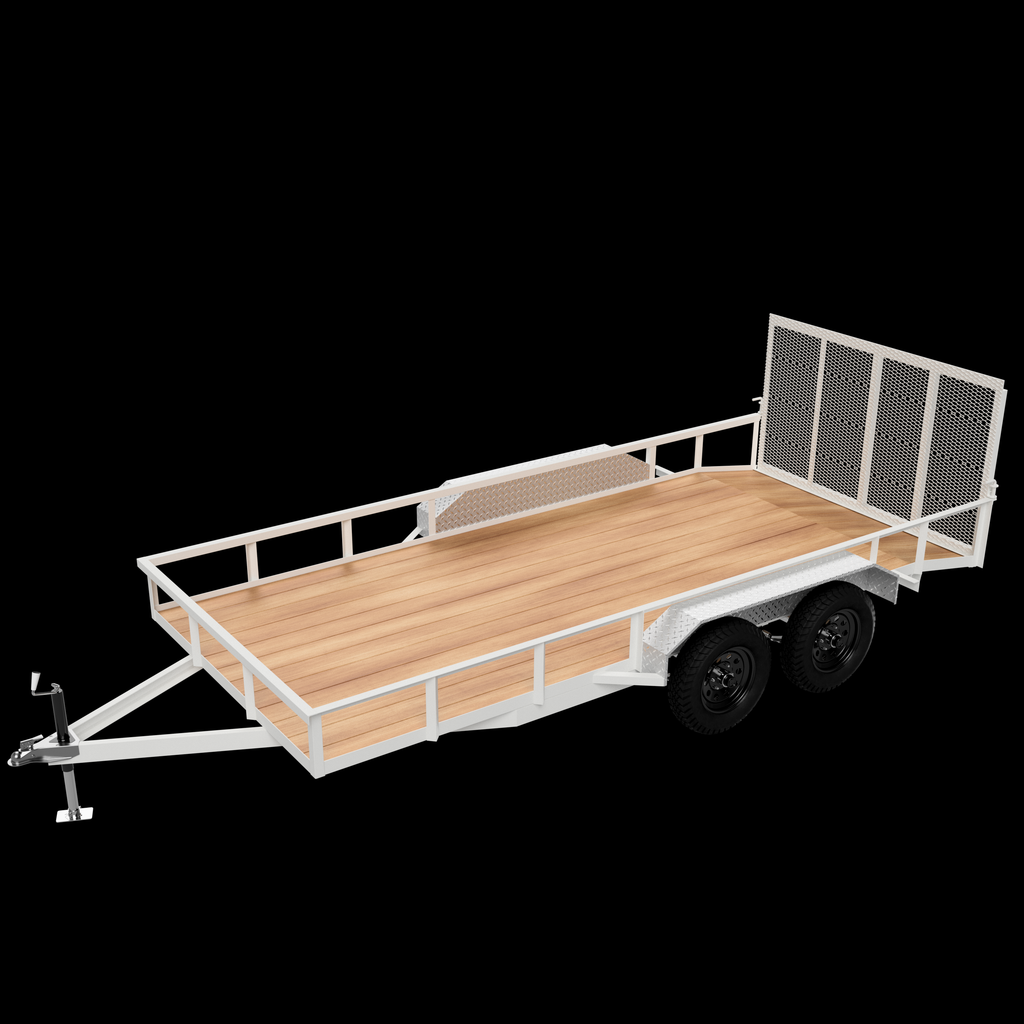

7' X 16' Utility Trailer 7,000lb

Description:

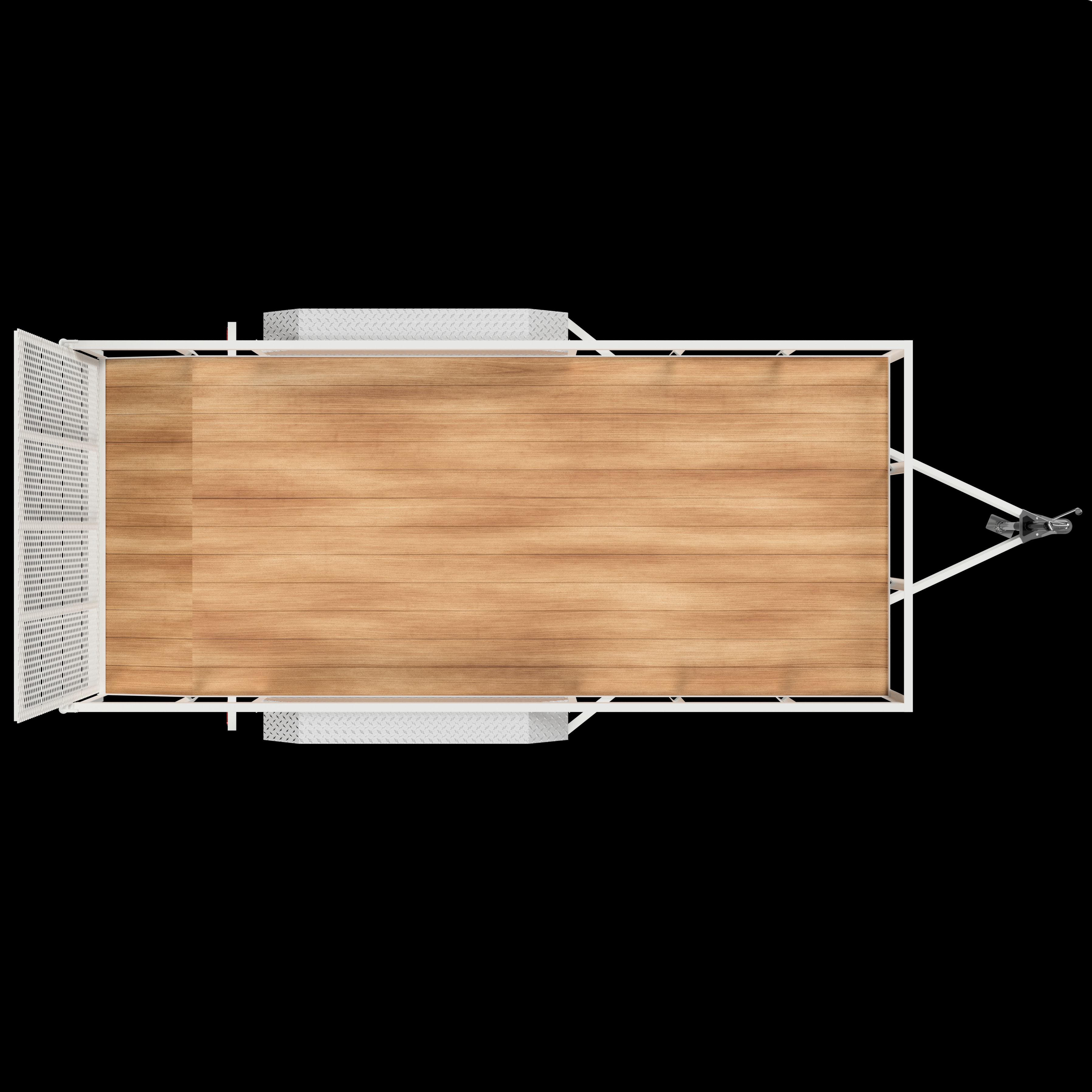

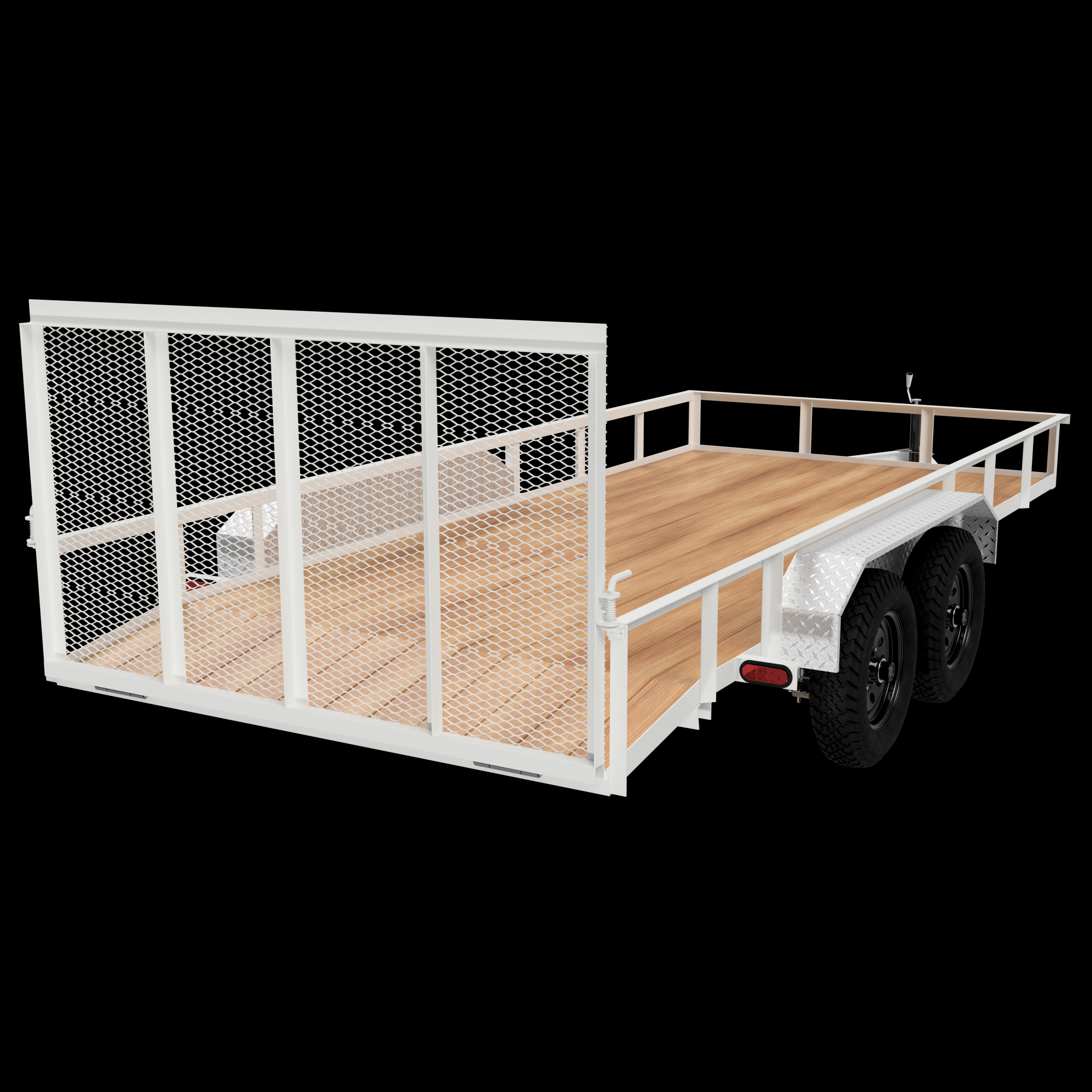

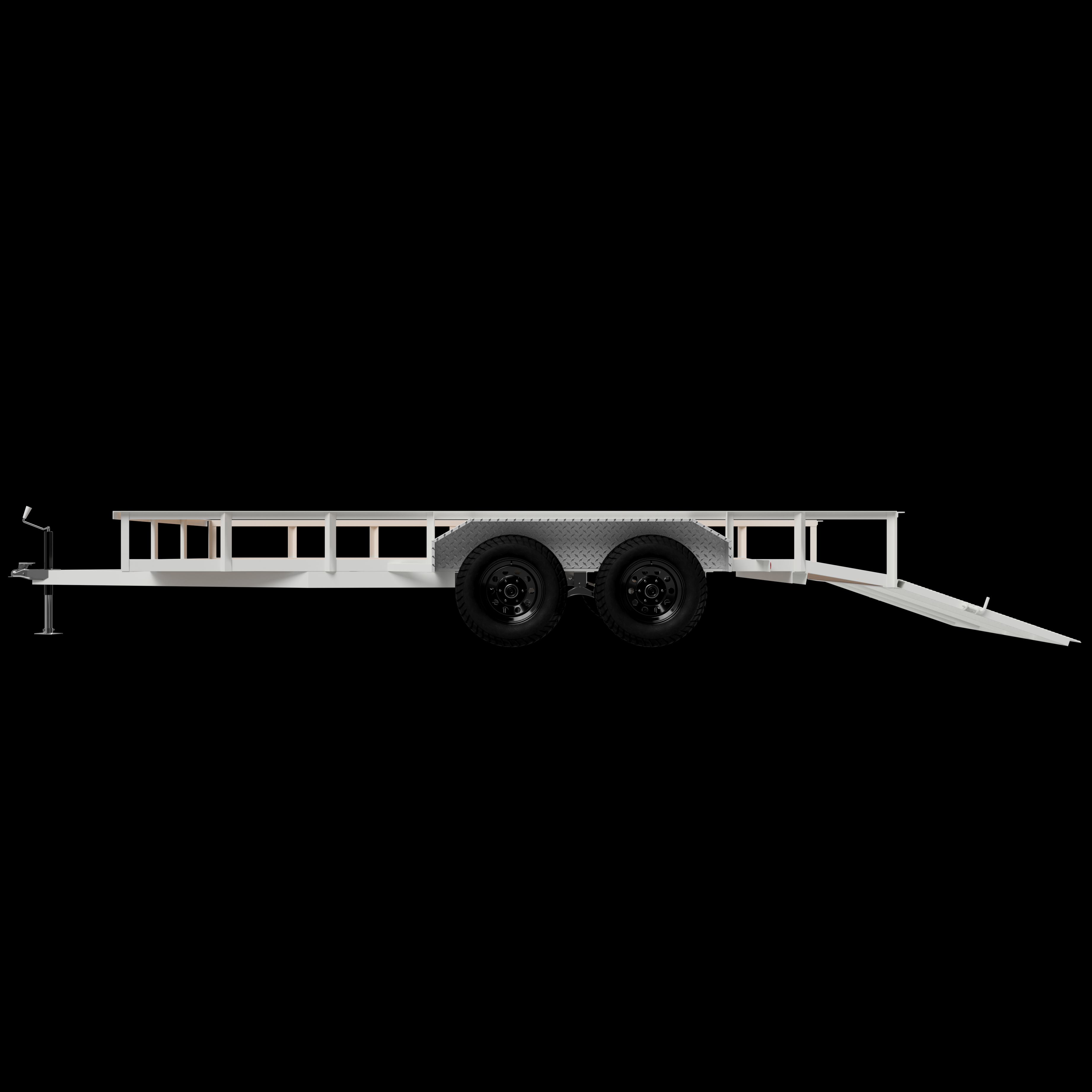

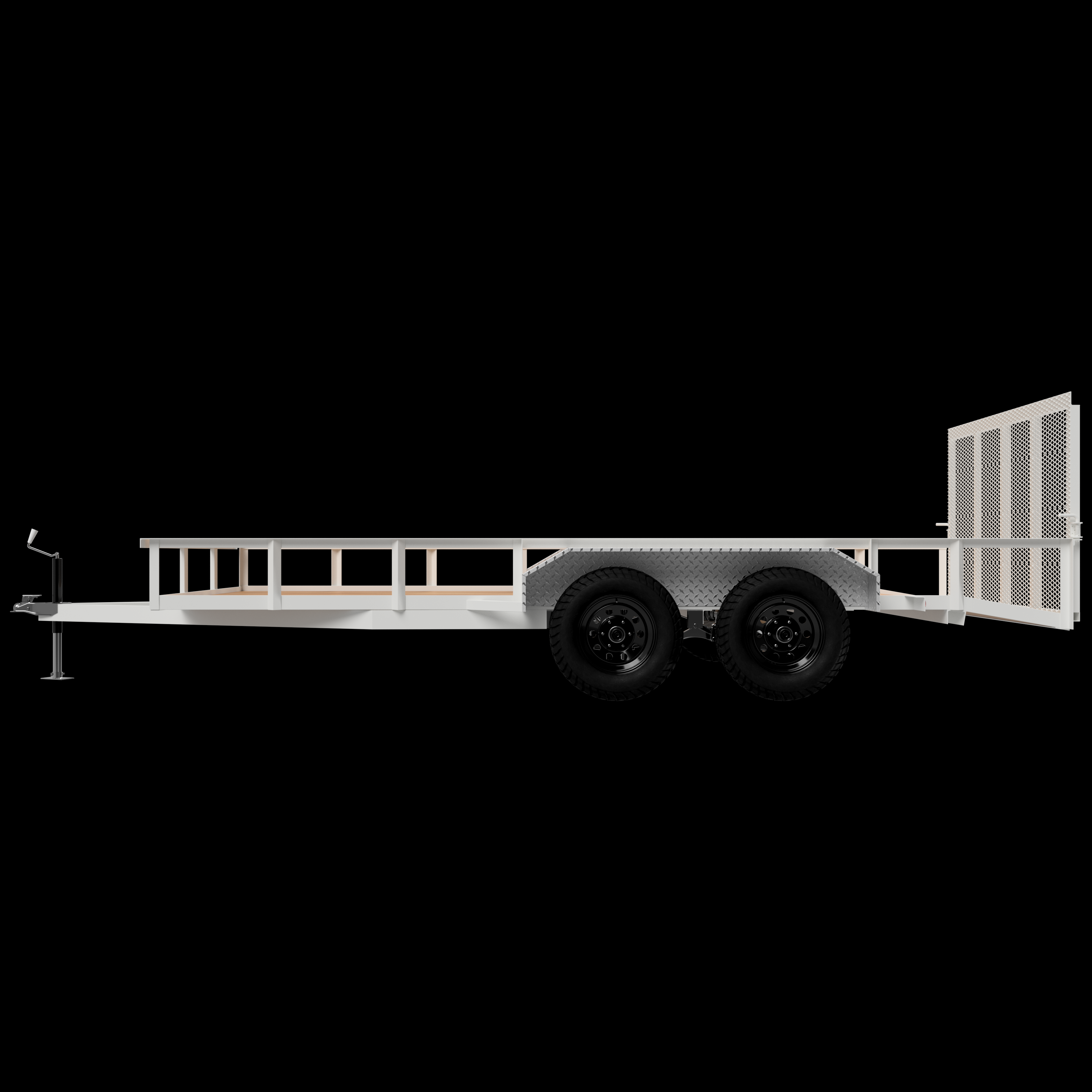

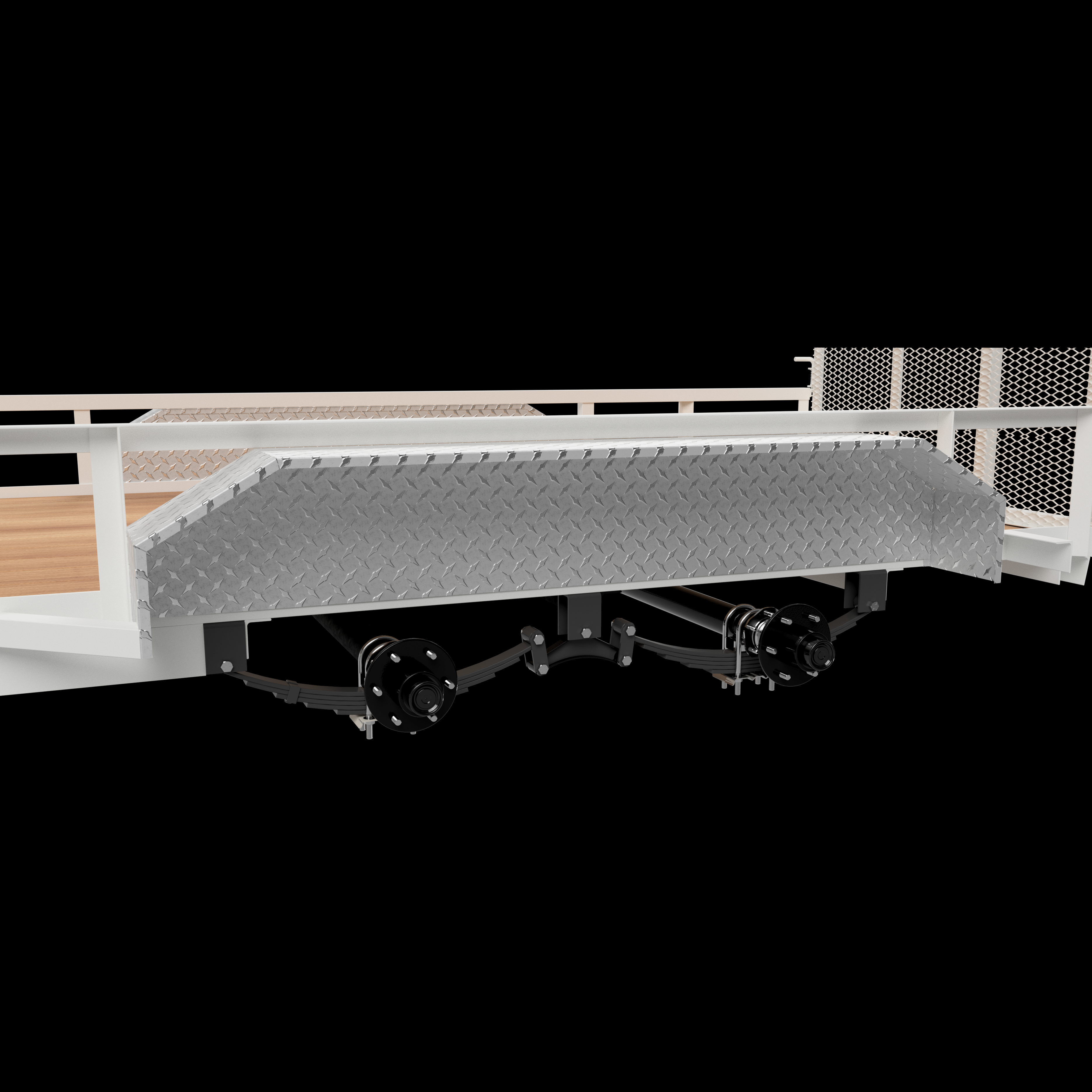

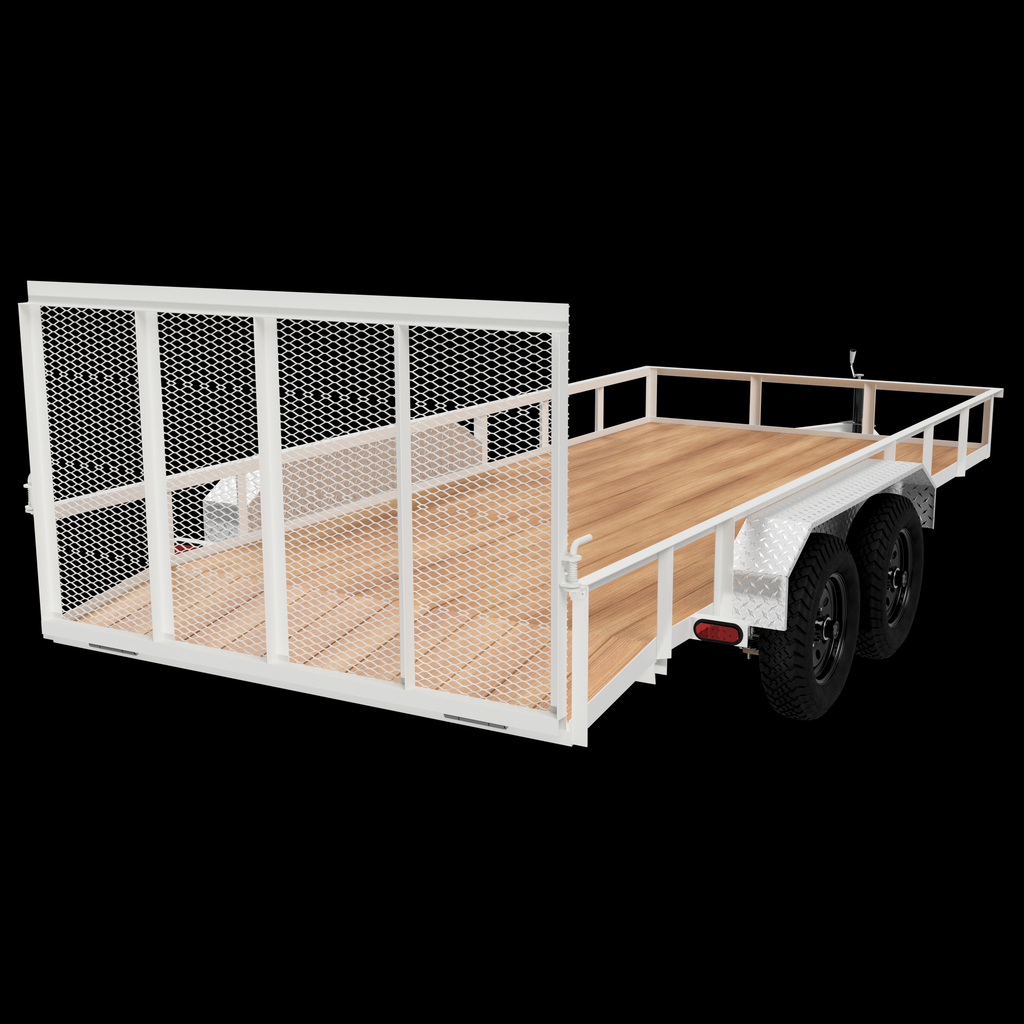

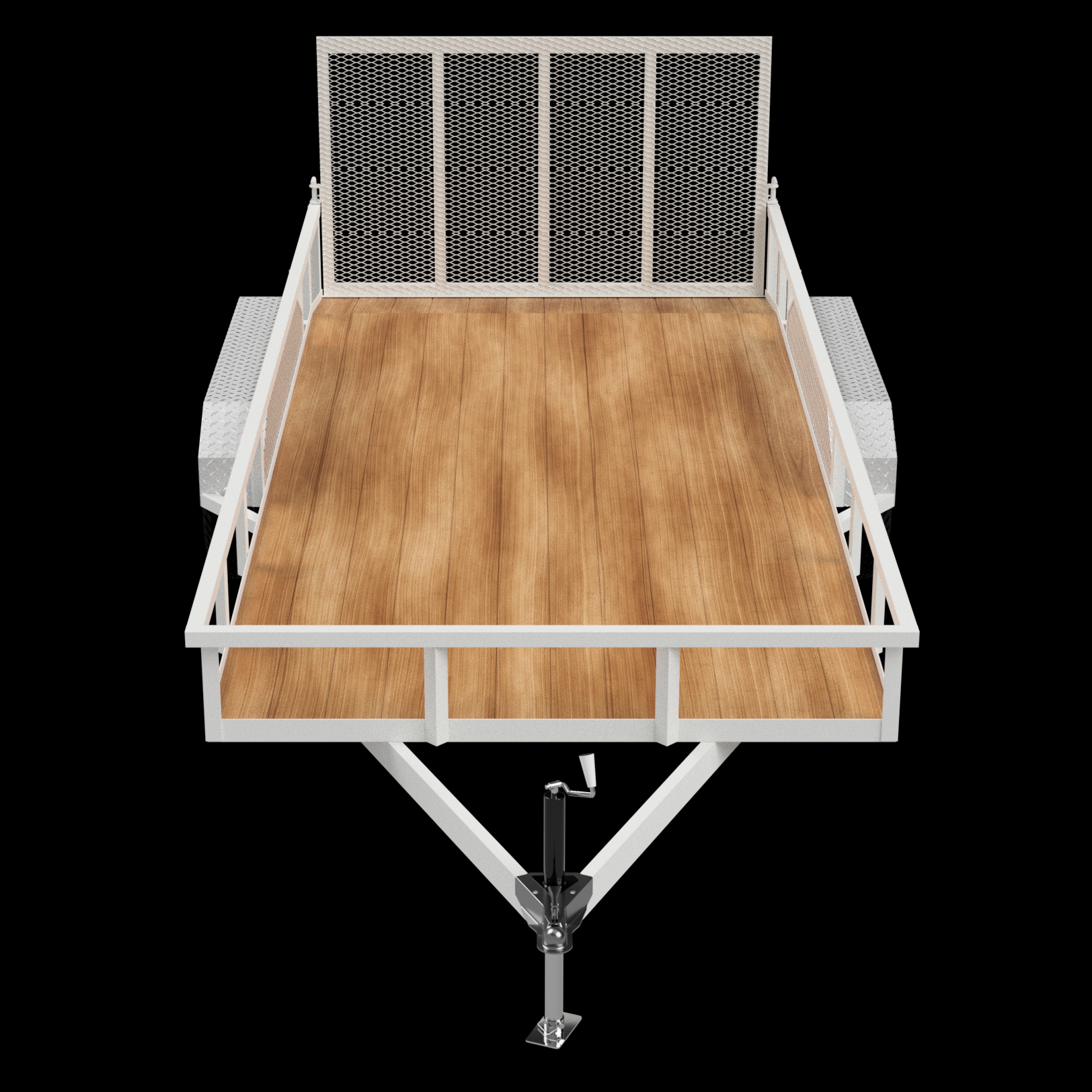

The Lightweight 7 ft x 16 ft Utility Trailer plans are engineered for efficiency without sacrificing durability. Weighing in at approximately 1350lbs, this trailer is ideal for hauling equipment with half-ton trucks. With a 7,000 lb GVWR, an 81.5-inch fender-to-fender width, and a 2ft dovetail for easy loading, it offers the capacity of a heavier trailer while maintaining that light profile. Its 3" X 2" X 3/16" frame has been FEA tested to verify structural integrity under real-world loads. Whether for personal or professional use, these plans deliver a dependable, hard-working trailer built to perform and last for years.

What you get:

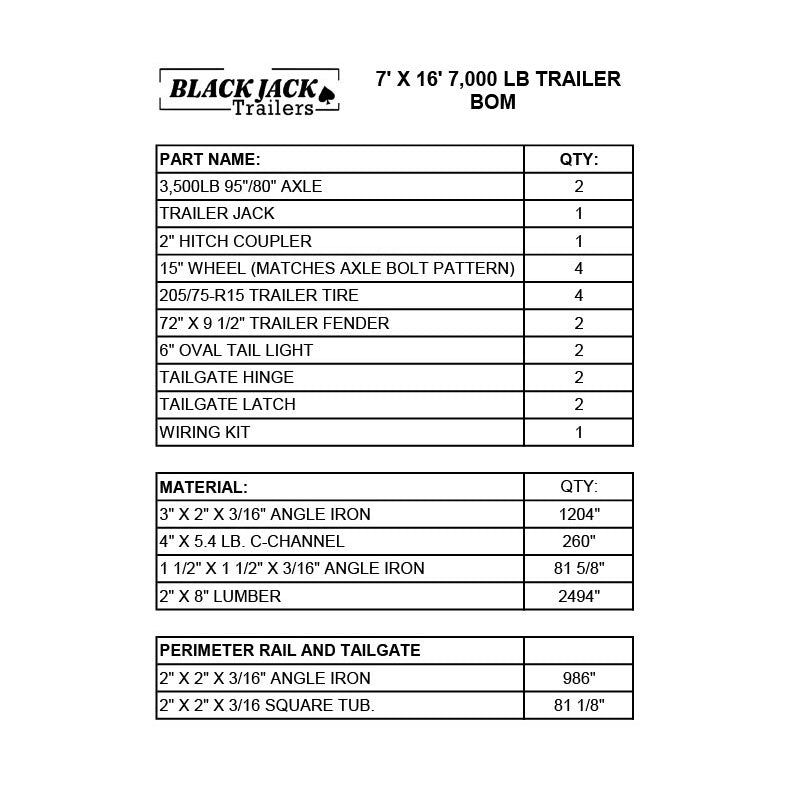

Once purchased, you'll receive a comprehensive set of build plans designed to be both professional-grade and accessible to first-time builders. Delivered in PDF format, the plans include detailed cutting dimensions, component specifications, and step-by-step assembly instructions. A full bill of materials is also included, so you know exactly what to source before you start. For those who want to take their build further, optional CNC files for all sheet metal components are available as .dxf files, ready to load straight into your plasma table.
We stand behind every set of plans we sell. Our customer support team is available 24/7 to answer any questions you have, from pre-purchase inquiries to build day troubleshooting.
